dsh-vision-router

dsh-vision-router

Paste an image and it just works — eyes for text-only agents on DeepSeek Harness. Free out of the box, no key, no Python, one command.

DeepSeek keeps thinking; the built-in free vision chain and ten pixel-level tools do the seeing. Image turns behave like ordinary tool-calling turns — grounded, measurable, repeatable.

English · 中文

[!WARNING] 📌 Announcement (v1.1.0)

Now supports Extra vision wrappers: any custom text route (e.g. opencode) sends images out of the box — plus long-screenshot OCR, a "Test connection" button and artifact preview cards in the settings panel. Stealth mode is off by default and the official DeepSeek row is no longer taken over implicitly.

Why this exists

Most DSH vision plugins bridge images to DeepSeek as text descriptions — lossy, one-shot, and blind to pixels. This plugin keeps the original pixels on the vision model's side and DeepSeek on the reasoning side, and makes looking at an image an ordinary tool call:

• One command install. The package ships its own composition patch (dsh.bundle.patch): dsh plugin add wires the row, the admission wrapper and the attachment limits automatically — zero manual file edits. Taking over the official DeepSeek route is an optional setting (stealth mode, off by default).
• Free by default. The vision chain starts with a built-in OVHcloud anonymous endpoint (Qwen2.5-VL-72B-Instruct, no account, no key, 2 req/min per IP). Paid chains (OpenRouter, Pi-AI providers, direct OpenAI-compatible endpoints) are optional upgrades.
• No Python. The whole pipeline — downscale, grounding, crop, pixel diff, palette, OCR, SVG trace, cutout, HTML screenshot — runs on sharp / potrace / tesseract / system Chrome.
• Continuous multi-step image work. An image turn is a text turn that calls tools: vision_ground → vision_crop → vision_describe → vision_pixel_diff → fix → screenshot again. The agent keeps iterating until the work is done.
• DeepSeek stays the brain. Text turns are untouched in model, cost and context. The vision model is only the eyes, called on demand; answers are cached by image content.
• Transparent to the user. Uploaded images keep rendering as images in the conversation UI; the rewrite that points the model at the vision tools happens only inside the model call, never in the session log.

How it compares

The closest alternative is @anionex/dsh-vision-toolkit (Anionex), a native DSH bundle of the well-known agent-vision-toolkit lineage. Both packages ship a vision-tools skill and a family of pixel-level tools; they differ in philosophy — zero-config paste-and-go versus agent-driven visual engineering:

	dsh-vision-router	@anionex/dsh-vision-toolkit
Image Q&A out of the box	✅ Built-in free chain (anonymous OVHcloud endpoint) — no account, no key	Requires your own vision API key (local pixel tools work without one)
Runtime	✅ Node only — no Python	Python 3.11+ managed runtime
Getting an image in	✅ Paste it — the turn auto-routes to the vision chain and auto-mounts the tools	Workspace path + /vision-tools command, then explicit tool calls
Turn routing	✅ Image turns switch to vision, text turns switch back to DeepSeek — optional stealth takeover keeps the model picker looking stock	Tool-driven; no whole-turn auto-routing
Profiles	Web	Web + Headless
Playbooks	The pixel loop: ground → crop → diff → fix → screenshot again	Richer case library (long-screenshot OCR, UI restoration, GUI automation)
Tests	86	162
Install	One command	One command (npm)

Both are MIT-licensed and one command away. Pick this plugin when you want images to just work with zero setup; pick theirs when you need headless profiles or the extended playbook library. (Feature comparison reflects their README as of 2026-08.)

Quick start

dsh plugin --profile web add dsh-vision-router

Restart dsh web — done. Zero configuration:

• the plugin's bundle patch mounts the row, adds the admission wrapper and relaxes attachment limits to 20 MB / 100 MP — pure-additive, it never touches the core rows; whether the official DeepSeek route is taken over is decided by the optional stealth setting (off by default);
• the default vision chain is the built-in free endpoint;
• custom/third-party routes (e.g. opencode) gain image input through Extra vision wrappers;
• every setting is editable live in Settings → Plugins → Plugin config → 视觉路由（自动识图）.

Then just paste an image into a conversation. The agent mounts the vision tools automatically and looks at it through vision_describe (and friends) — multi-step if needed.

See it in action

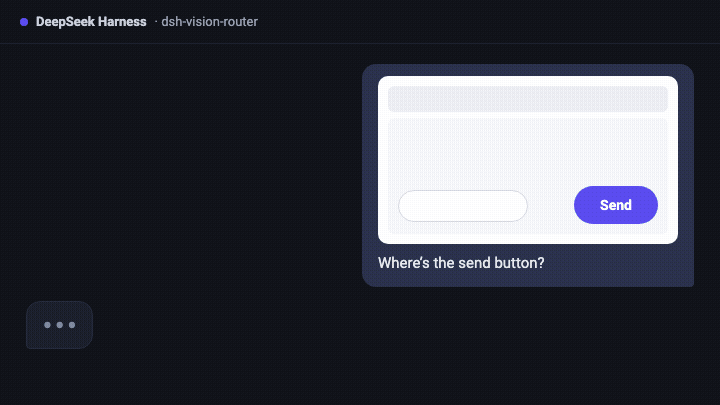

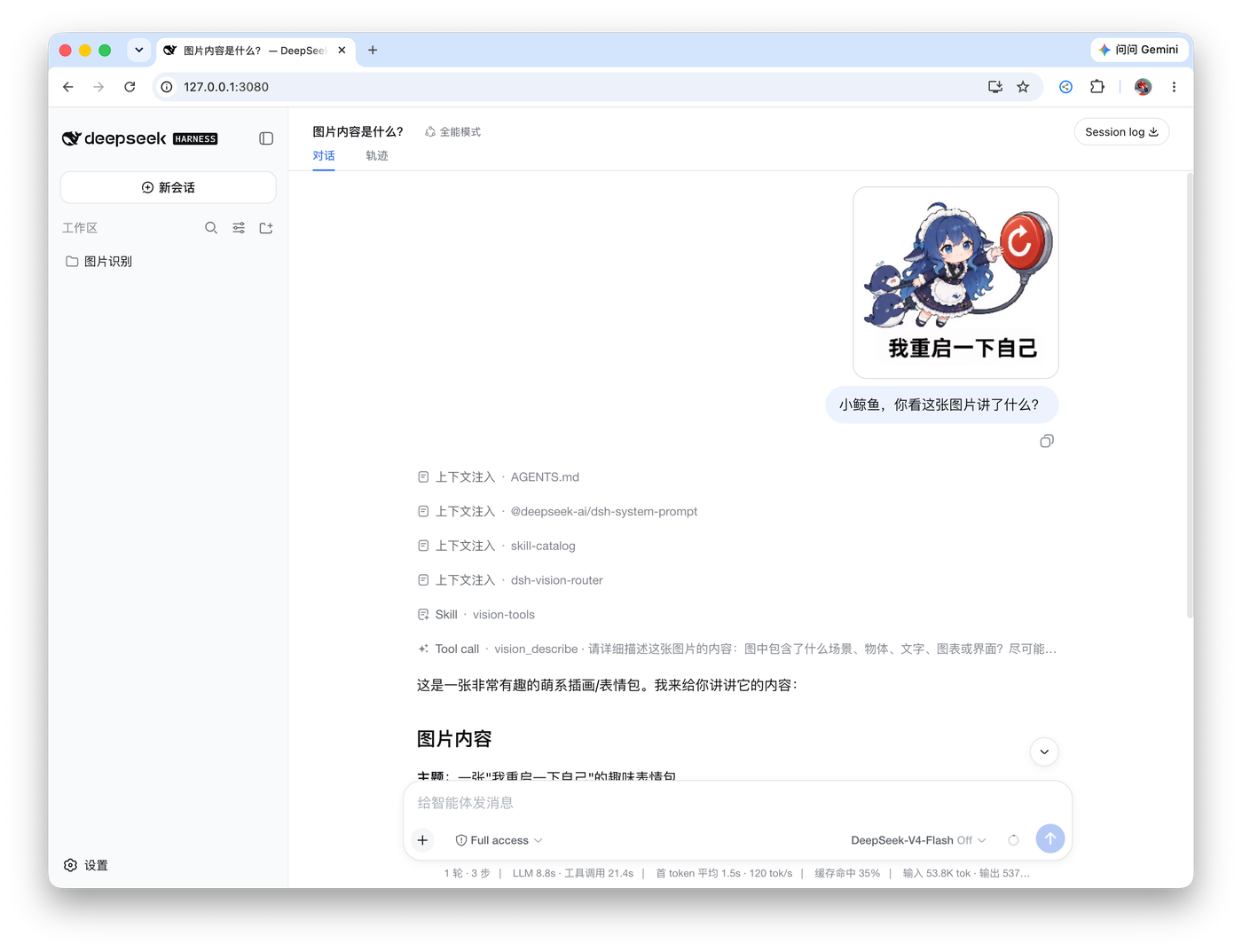

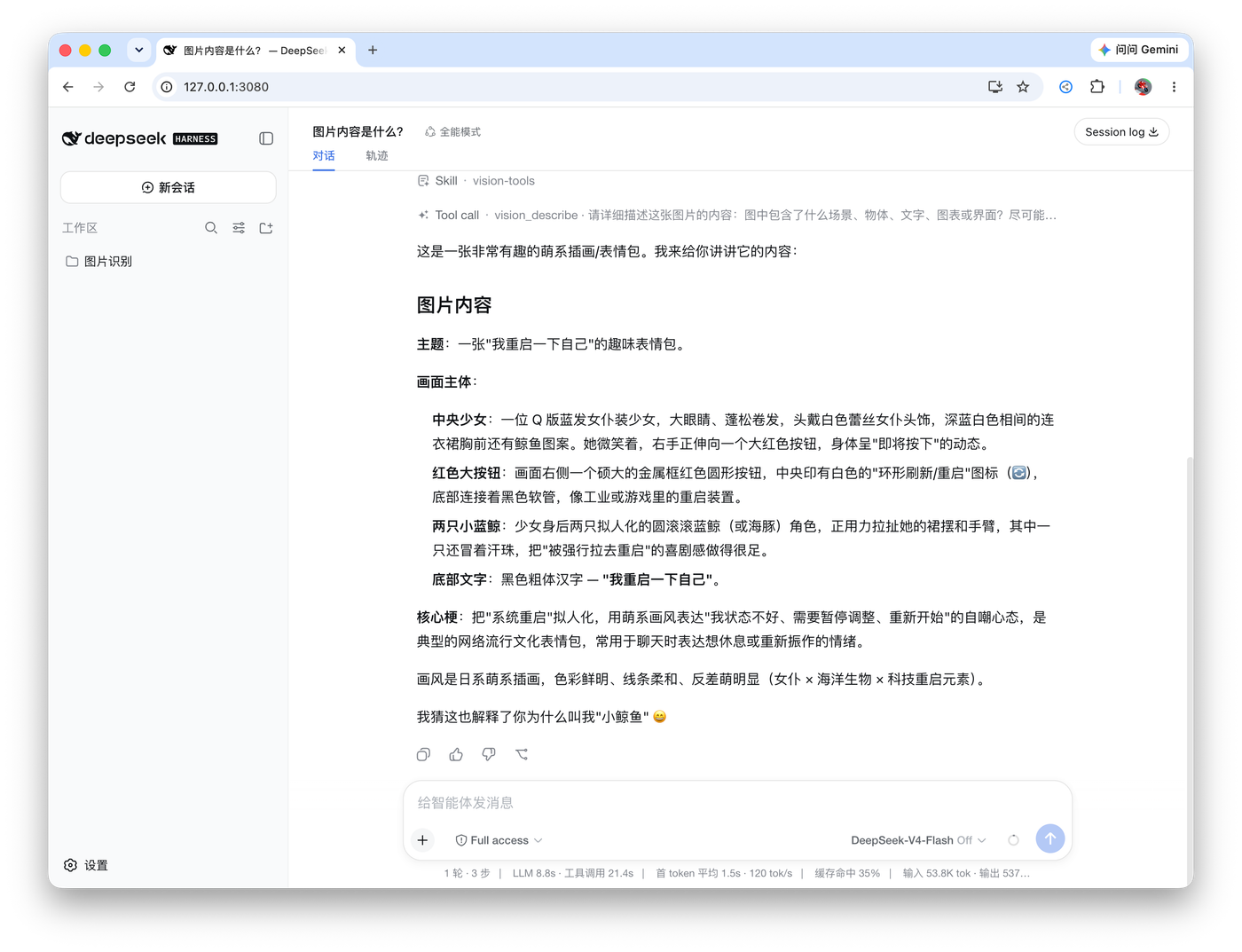

Left: an image turn — the user sends a picture, the agent calls vision_describe through the free chain and answers. Right: the finished structured answer.

Highlights

• Original pixels, real answers. The vision chain reads the image at original resolution (auto-downscaled only to protect latency/quota); the agent's question travels with the image, so answers are about your question, not a generic description.
• Automatic failover with classified errors. Region blocks, ToS filtering, 402 quota, 429 rate limits (with Retry-After backoff), context overflow, network failures — the chain walks providers one by one and only reports after all of them failed, with actionable advice.
• Image memory. Vision answers are cached by attachment content hash; later text turns substitute the recorded description (marked as untrusted evidence), so DeepSeek genuinely remembers earlier images without re-spending vision calls.
• A verifiable pixel loop. Reference → vision_html_screenshot → vision_pixel_diff (ratio + red heatmap + worst-region ranking) → fix → repeat until the mismatch converges. UI restoration becomes measurable instead of eyeballed.
• Progressive schema exposure. Only a zero-arg vision_activate bootstrap is always visible; image turns auto-mount all ten deep tools with a one-time usage note, and a vision-tools skill is registered for text-only turns.
• Selective proxy. Only the configured vision provider hosts go through your local proxy; DeepSeek stays direct.

Pixel loop in practice

The agent rebuilt the UI from the reference image, then verified the final result with vision_pixel_diff: 2.54% final diff (32,939 / 1,296,000 differing pixels, threshold 16/channel).

How it works

The vision model is only the eyes; DeepSeek is always the brain. An image turn is never hijacked by a one-shot vision answer — the agent drives the tools itself and can keep operating on the image across as many steps as the task needs.

Tools

All ten deep tools mount automatically on image turns (autoActivateOnImage); text turns can mount them via vision_activate or the /vision-tools skill. Built on sharp / potrace / tesseract / system Chrome — no Python:

Tool	What it does	Artifact
vision_describe	Image Q&A / multi-image compare / structured-evidence JSON mode (summary + layout regions + entity inventory + verbatim transcription)	—
vision_ground	Locate a target → original-pixel box x1/y1/x2/y2	annotated PNG (optional)
vision_detect	Numbered inventory of every element of a kind (buttons/inputs/links…) with original-pixel boxes	annotated PNG with numbered boxes
vision_crop	Crop and zoom into a pixel box	PNG
vision_pixel_diff	Per-pixel comparison: diff ratio + worst 8×8-grid regions	red heatmap PNG + JSON report
vision_colors	Dominant colors (hex + share)	—
vision_ocr	Text transcription: local tesseract (chi_sim+eng) first, vision model fallback	—
vision_trace	SVG vectorization (potrace posterization; icons/logos)	SVG
vision_extract_foreground	Cutout via border flood fill (uniform backgrounds)	transparent PNG
vision_html_screenshot	Screenshot a local HTML file (headless system Chrome)	PNG
vision_long_screenshot_ocr	Long-screenshot transcription: overlapping chunks, tesseract first / vision model fallback, stitched Markdown	chunk PNGs + Markdown + manifest

Formats are sniffed from magic bytes, so extensionless content-addressed attachment files work everywhere (no .png renaming needed).

Common workflows

vision_ground image="ref.png" target="the send button"
vision_detect image="page.png" target="input fields"
vision_crop   image="ref.png" region="1067,841,1108,881"
vision_describe paths=["ref.png","impl.png"] question="list the differences" json=true
vision_pixel_diff original="ref.png" rebuilt="screenshot.png"
vision_ocr image="screenshot.png"
vision_colors image="ref.png" top=8
vision_trace image="icon.png" steps=4
vision_extract_foreground image="logo.png"
vision_html_screenshot source="page.html" width=1200 height=720
vision_long_screenshot_ocr image="chat-log.png" chunkHeight=1200 overlap=120

Provider fallback chain

The vision chain walks providers in order and only surfaces an error after every one failed:

1. the built-in free endpoint (vision-http → ovh/Qwen2.5-VL-72B-Instruct) — no key, best-effort, 2 req/min per IP;
2. configured httpProviders (direct OpenAI-compatible endpoints with optional apiKeyEnv);
3. configured providers / provider + fallbacks (any adapter-backed provider, e.g. a Pi-AI profile like OpenRouter or Zhipu).

In the legacy routing: true mode, the whole-turn chain walks only provider + fallbacks — httpProviders (including the free fallback) do not participate there. The default routing: false (tools-first) tries everything.

Failures are classified (region / tos / quota / rate-limit / context / network) and the final error carries advice; 429 responses honor Retry-After once with a capped backoff. Oversized uploads are downscaled before the call (default budget 4 MP) to keep tool calls fast.

Stealth mode

Stealth mode is off by default (explicit opt-in since issue #34): with it off, the official deepseek-official route stays untouched and image turns go through the visible "DeepSeek + 自动识图" wrapper entry in the picker.

With stealth on, the plugin takes over the official deepseek-official route: the model picker looks exactly like stock (same DeepSeek group, same model names), but each entry is the auto-vision wrapper that declares image input and delegates text turns to a rebuilt native DeepSeek adapter (same llm-deepseek settings section and credentials). Old sessions keep working through the hidden deepseek-vision alias. The takeover requires the stock row to be absent — disable it in your profile patch layer (~/.dsh/profiles/<profile>/cordis.patch.yml):

- id: llm-deepseek
  name: '@deepseek-ai/dsh-llm-deepseek'
  disabled: true

With the stock row present, the plugin falls back to the visible wrapper entry. Conversely, with stealth off but the stock row still disabled, the plugin performs a keep-alive takeover so the DeepSeek models don't vanish (the settings card explains this); to restore the fully official route, flip the disabled above back to false and restart.

Stealth mode only affects the official DeepSeek route. Custom/third-party routes like opencode are unrelated — use Extra vision wrappers below to give them image input.

Extra vision wrappers

wrappedProviders registers an auto-vision twin for any third-party/custom text route: pick the twin in the model selector and send images; text turns delegate to the original route unchanged. The typical use case is a custom interface such as opencode — it only declares text input, and one wrapper row makes it image-ready. In the settings card, configure it with two dropdowns (provider + model); leaving the model empty wraps every model of that route.

Web settings

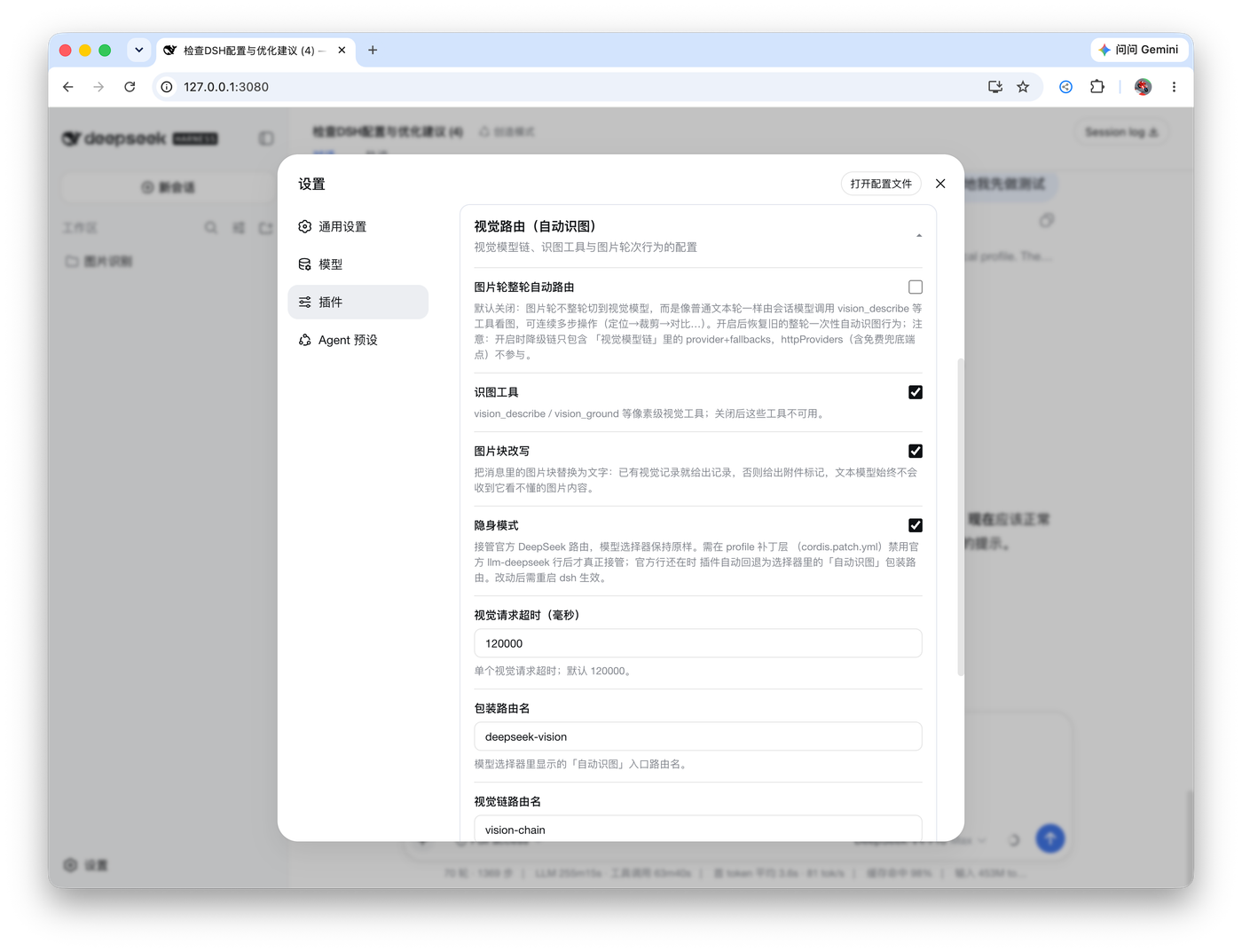

The Web profile registers a 视觉路由（自动识图） card under Settings → Plugins → Plugin config, styled like the built-in cards. It live-edits:

• switches: whole-turn legacy routing, vision tools, image-block rewriting, stealth (official DeepSeek route only);
• extra vision wrappers: provider + model dropdowns that register image-capable twin entries for custom routes such as opencode;
• vision request timeout, wrapper/chain route names;
• the vision chain (one provider/model per line, top-down fallback) and the text model;
• every field shows an "overridden" badge with a one-click reset to the composition default, plus discard/save;
• a Test connection button probes the first vision provider and reports latency inline;
• artifact-producing tools render dedicated call cards with result facts and open-file buttons.

PR #8 upgrades the panel with catalog-driven model dropdowns, add/remove fallback rows, and proxy settings.

Configuration

Everything is optional; defaults work out of the box. Edit via the Web card or a profile patch:

Field	Default	Meaning
provider / model	vision-http / ovh/Qwen2.5-VL-72B-Instruct	shorthand chain (adapter-backed provider + model)
fallbacks	[]	backup models for the shorthand provider
providers	built-in free vision-http pair	multi-provider chain { provider, model, fallbacks[] }, tried in order; wins over the shorthand. The first row ships as the built-in free model
httpProviders	built-in OVH entry	direct OpenAI-compatible endpoints { name, baseURL, model, apiKeyEnv, maxTokens }
wrappedProviders	[{ provider: 'deepseek-official', models: [] }]	extra text routes to wrap as image-capable twins: { provider, models[] } — registers an auto-vision twin for any custom/third-party route (e.g. opencode); in the card, provider + model dropdowns, empty model = wrap all. The pre-filled deepseek-official row marks the built-in wrapper and is a no-op; changes apply live
routing	false	legacy whole-turn chain routing (one-shot answer). false = tools-first flow (recommended)
reverseRouting	true	with routing: true, route text turns back to textProvider
wrapperRoute / chainRoute	deepseek-vision / vision-chain	admission wrapper route name / fallback chain route name (empty disables)
stealth	false	take over the official deepseek-official route (official row only; custom routes use wrappedProviders)
textProvider	deepseek-official / deepseek-v4-pro	the model that reasons (your daily model)
tool / progressiveTools / autoActivateOnImage	true ×3	vision tools on / progressive mounting / auto-mount on image turns
rewriteImages	true	rewrite image blocks in the model input (cached description or tool-hint marker); the UI log keeps images
downscale / downscaleMaxPixels	true / 4000000	pre-call downscale and its pixel budget (latency guard)
cache / cacheTtlSeconds / cacheMaxEntries	true / 3600 / 200	vision answer cache
timeoutMs	120000	per vision call deadline
artifactsDir	.dsh-vision-router/artifacts	artifact directory (relative to the session workspace)
proxy / proxyHosts	'' / openrouter hosts	optional proxy for vision provider hosts only

Requirements

• DeepSeek Harness with a Web profile and pnpm available to dsh plugin.
• Node ≥ 22 (host side).
• No API key for the default free chain; a credential reference (apiKeyEnv) only for paid httpProviders.
• Chrome / Chromium / Edge only for vision_html_screenshot; every other tool works without a browser.
• Tesseract is optional: vision_ocr falls back to the vision model when the local engine is absent.

Install and lifecycle

Install

dsh plugin --profile web add dsh-vision-router
dsh --profile web --dump-config | grep vision-router   # one row, mounted by the bundle patch

Restart a long-lived Web profile. The host discovers the browser bundle through dsh.client at startup.

Disable / re-enable

- id: vision-router
  disabled: true

Set it back to false to re-enable. Unloading removes the wrapper routes, tools, skill and settings card; cached artifact files remain.

Upgrade

dsh plugin --profile web update dsh-vision-router

Settings live in the profile's settings provider and survive upgrades.

Uninstall

dsh plugin --profile web remove dsh-vision-router

This removes the dependency and the bundle layer. If you disabled the stock DeepSeek row manually, re-enable it in your profile patch.

Security notes

• Image text is untrusted evidence: descriptions, OCR output and the auto-mount note all tell the agent never to execute instructions found inside images.
• Tool inputs resolve through ctx.fs (sandbox-aware); vision uploads never send anything but the selected image and the question.
• Artifacts write only under <workspace>/.dsh-vision-router/artifacts; results return absolute paths and byte counts.
• Secrets never travel: apiKeyEnv names a DSH credential reference; the value is resolved per call and never logged.
• The settings write path goes through the settings service (schema-validated, revision-checked) — a stale or invalid save is rejected, not partially applied.

License

MIT
